Burtoll Diamond Burnishing Tools are simple, efficient tools designed to produce mirror-like finishes on a wide range of fer rous and nonferrous part surfaces on most turning machines
Set up and cycle times are short, even for unskilled operators. In all cases,the replaceable diamond insert can be changed quickly; on some models without removing the tool holder from the machine.
Diamond Burnishing Tools are commonly used in industries such as aerospace, automotive, medical, and precision engineering—where surface integrity and accuracy are critical.
Ask for catalogueHow It Works?!
The Burroll Diamond Burnishing Tool is mounted in the tool post of the desired machine. The diamond burnishing point is brought into contact with the workpiece at the centerline of the part and perpendicular to the surface being finished. The tool is then fed into the workpiece an additional .002 or .003 inch (.05 or .08mm) to allow the diamond insert to become disengaged from the stop in the holder. The spring, with its preload, forces the diamond against the workpiece. The tool is then fed along the surface of the rotating workpiece to produce a mirrorlike finish.
As a recommended starting point the adjusting screw should be tightened (turn clockwise) until all clearance between the push rod and the spring is removed. Then tighten the screw another 1 to 2 turns which will compress the spr ing to provide the necessary preload to the diamond insert. This is the
Why Us!
Our Diamond Burnishing Tools are engineered for maximum durability, ease of use, and adaptability. Whether your goal is cosmetic finish or functional surface enhancement, our tools deliver precise results across a wide variety of materials and geometries. We also offer custom tip profiles and holder designs to suit your unique production needs.
Ultra-Smooth Finish
Achieves optical-grade surfaces and mirror polish on metals like aluminum, brass, stainless steel, and titanium.
Extended Tool Life
The diamond tip provides unmatched wear resistance, reducing downtime and cost per component.
No Abrasives or Coolants
Clean, dry process improves efficiency and reduces post-processing cleanup and environmental concerns.
Consistent Results
Uniform burnishing across high-volume parts with minimal operator input or tool maintenance.
Multiple tool designs
- DBL: Use where work length is restricted
- DBS: For general purpose machining

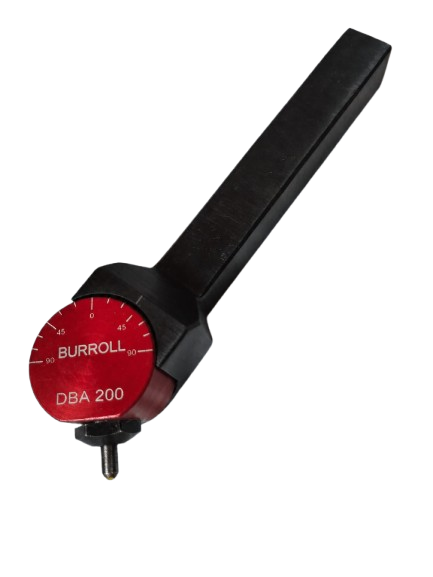

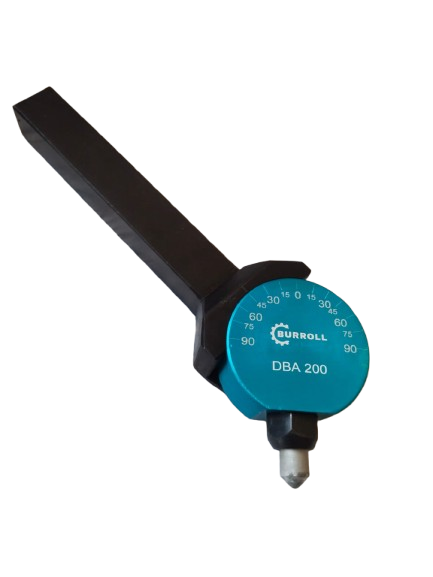

DB200 & DB250: Tool holders are offset so that the diamond insert is on center
BBS: Designed for boring type applications
